Ground Screws
The modern way to do foundations
The benefits of ground screws
Ground screws are the new, modern, and superior option to expensive and environmentally damaging concrete.
Rapid Installation
Up to 70% faster to install than traditional concrete foundations.
Environmentally Friendly
No digging, no concrete - minimising environmental impact.
Cheaper & Easier
Ground screws work out cheaper than concrete and are easier to use.
Simple & Accessible
Can't get a digger in your back garden? Not a problem with ground screws.
Immediate Construction
No need to wait for concrete to dry, building can commence right away.
All Year Round Installation
Can be installed year-round, regardless of weather conditions.
The how and where of ground screws
Ground screws are extremely versatile and can be used in a variety of applications. They come in different sizes, with different attachments adding to their versatility.
Ground screws can be used for a variety of projects
Ground screws are a great alternative to concrete foundations and as such, can be used in a variety of applications - including garden rooms. They can be used for decking, ground mounted solar panels, golf simulators, glamping pods and even home extensions.

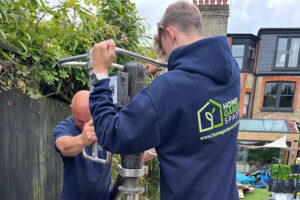

The installation of ground screws is quick and easy
As a superior alternative to concrete foundations, ground screws are quick and easy to install.

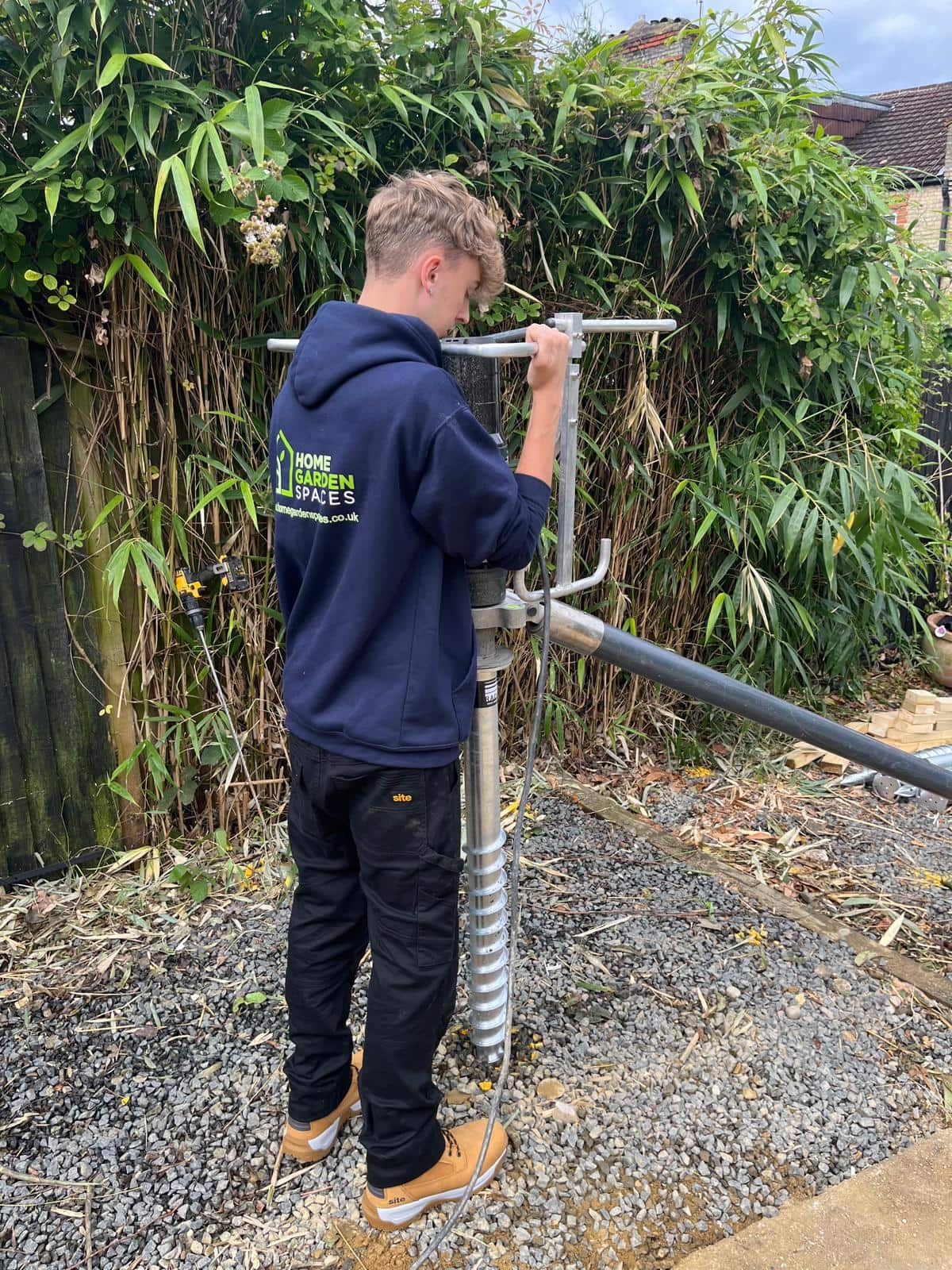

The essential kit is a high torque ground screw machine, which is easily movable so it can go places that diggers and other heavy machinery can't.

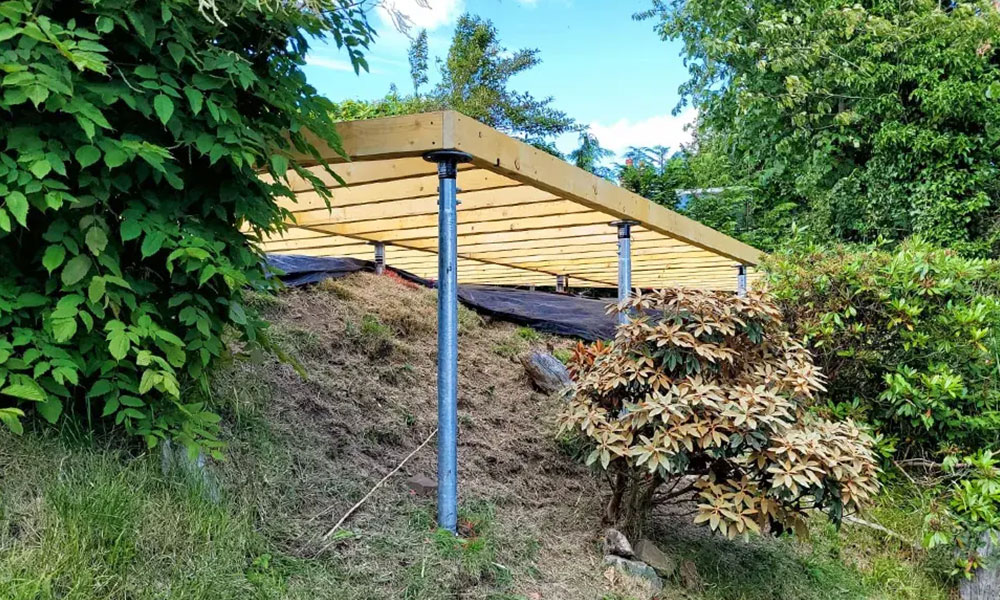

The screws are then placed using a laser level, which means they can even be used on steep inclines where concrete would struggle.Ground screw sizing

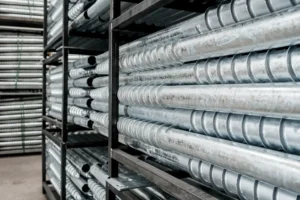

As ground screws have various different application and uses, it means that different sizes can be required.
Available in lengths; 800mm, 1050mm, 1250mm, 1550mm and 2050mm.
Extension pieces are also available in 500mm, 1000mm, 1500mm and 2000mm lengths for very uneven surfaces.

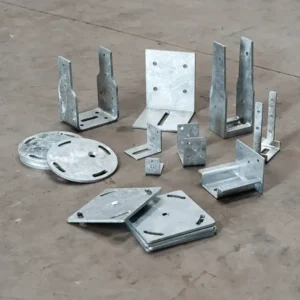

Various different attachments for whatever your project is.
Change text to: Whatever you are building, there are various attachments to help you achieve this, however, you will need to secure your structure, beam brackets, post brackets, and L-supports amongst others.
The frequently asked questions about ground screws
Can you install ground screw foundations all year round?
Yes, our foundations can be installed throughout the year, but it’s worth noting some seasonal factors:
- Winter Conditions: In areas prone to harsh winters, frozen or snow-laden ground can pose challenges. Specialised equipment or pre-drilling might be necessary to penetrate the frozen soil.
- Wet Conditions: During periods of heavy rainfall or in damp climates, the soil may become softer or waterlogged, potentially impacting the stability and installation of the screws. A thorough assessment and appropriate techniques are crucial for a secure installation.
- Summer and Dry Conditions: Conversely, in dry spells or arid regions, the ground can harden, necessitating additional effort or alternative equipment for effective installation.
- Professional Assessment: Regardless of the season, a professional evaluation of the soil and environmental conditions is vital to determine the optimal installation method.
In summary, while seasonal variations can present certain obstacles, with careful planning and suitable equipment, installations can be successfully carried out in most weather conditions throughout the year. This is a significant advantage over concrete foundations, which are severely limited and not feasible in certain conditions.
Are ground screw foundations better than concrete from a sustainability point?
From a sustainability perspective, ground screw foundations often have advantages over concrete piers:
- Lower Environmental Impact: Screws are less invasive to the soil, as they don’t require extensive excavation or concrete pouring. This reduces the disturbance to the local ecosystem and soil structure. The machinery used does not damage the surrounding landscapes and with no excavation, there is no soil removal. Professional installations can easily navigate tree roots and other obstacles.
- Reduced Carbon Footprint: The production of concrete is energy-intensive and generates significant CO2 emissions. By avoiding concrete, screw foundations contribute to a lower carbon footprint. They have less embodied carbon than concrete alternatives.
- Reusability and Removability: Ground screw anchors can be removed and reused, offering a sustainable option for temporary structures or when changes are needed. This contrasts with concrete piers, which are permanent and create waste if removed.
- Less Resource Intensive: The installation of ground screws typically requires less machinery and energy compared to digging and setting concrete piers.
- No Water Usage: Concrete piers require water for mixing concrete, whereas ground screws do not, reducing water usage.
- Immediate Usability: Ground screw foundations are ready for use immediately after installation, unlike concrete, which requires time to cure. This efficiency reduces the overall environmental impact of construction projects.
While ground screws offer these sustainability benefits, the best choice for your foundations depends on the specific requirements of the project, including load-bearing needs, soil conditions, and long-term objectives.
Lets talk about getting your foundations right.
At Home Garden Spaces, we supply and install ground screws for whatever your project requires.
